Aviationweb déjà vu                 Luchtvaart déjà vu Micro Light Aeroplanes

F-JCCN

Avid Flyer Mark IV
D-METT PH-2H7
PH-2K9 PH-2R1
Aeropro Eurofox
PH-3N5
OO-D61 PH-3N5
PH-3N8 PH-3P1
PH-3P2 PH-3R3
Evektor EV-97 EuroStar
D-MUKO PH-3R1
PH-3R4 PH-4C6

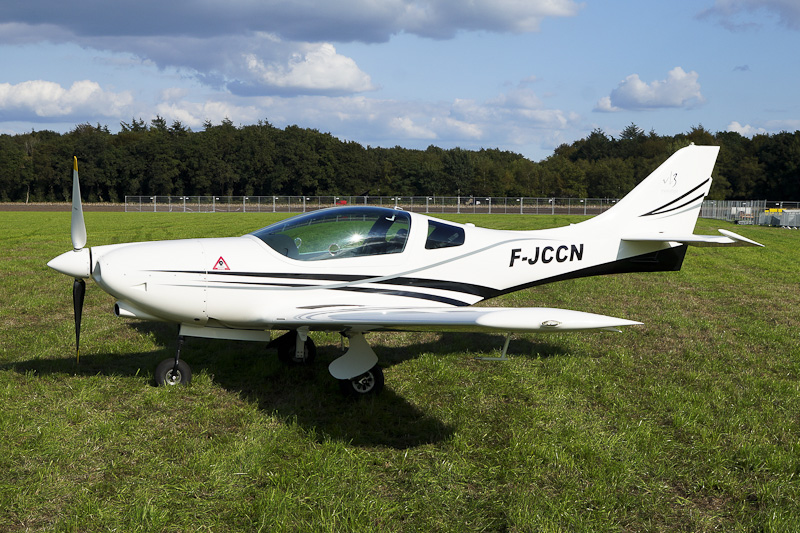

F-JCCN JMB Aircraft VL-3E Evolution - MLA airfield Gees in Holland - 1 September 2018 temporary MLA airfield Gees

On 6 December 2017, the JMB Aircraft VL-3E Evolution F-JCCN / 59-DSH arrived on delivery at the former AFB Twenthe in the Netherlands. The 2017-built JMB Aircraft VL-3E Evolution F-JCCN was seen at the temporary MLA-airfield Gees in Drenthe, Netherlands, during the Fly-in Gees on 1 September 2018.

The JMB Aircraft VL-3 is an composite-construction, single-engined, low-wing aeroplane with a bow-type retractable or fixed landing-gear and two side-by-side seats, manufactured by JMB Aircraft of Choceň in the Czech Republic. JMB Aircraft is part of the Belgian JMB Aircraft Company. The VL-3 was designed by Vanessa Air as a touring or recreational ultralight aircraft to comply with the Fédération Aéronautique Internationale microlight rules. It features a cantilever low-wing a two-seats-in-side-by-side configuration enclosed cockpit, fixed or retractable tricycle landing gear and a single engine in tractor configuration. The aircraft is made from composites. Its 8.44 m span wing has a small wing area of 9.77 m2. The standard engine is the 100 hp Rotax 912ULS four-stroke powerplant. On 6 June 2004, the Vanessa Air VL-3 Flamingo prototype s/n 001 OK-JUU-21 was flown first. On 19 October 2005, the world record in the two-seat ultralight class was set by the VL-3. The crew of the VL-3A-1 s/n 001 OK-JUU-21 microlight aircraft reached at that time a speed of 274.78 km/h on a straight 15/25 km course near Horovice, Czech Republic. In April 2006, the VL-3 aircraft with fixed composite undercarriage, version VL-3B, was introduced. The VL-3 with fixed gear is cheaper and more useful for flight schools. The VL-3 plane was certified according to regulation UL-2 of the Amateur Aeronautical Association of the Czech Republic for a maximum take-off weight (MTOW) of 450 kg. The VL 3 is also certified in the UL catagory for MTOW 450 kg and for MTOW 560 kg according JAR - VLA. The VL-3 was produced first by Karel Klenor - KLN, Choceň (2004-2007) and Aveko spol. s r. o., Brno (2007-2011). In 2012, the JMB Aviation company acquired the Aveko company and started to upgrade the aircraft. Notable changes to the design were the elevator design in order to allow the aircraft to fly faster and an upgrade of the interior. The aircraft is supplied as a complete ready-to-fly-aircraft. A fixed gear version with a larger wing span and area as well as a higher gross weight was developed for the US light-sport aircraft category and is marketed as the Gobosh 800XP.
In 2019, the ultralight VL-3 Evolution from JMB Aircraft has been certified by the DAeC for 600 kg of take-off mass. Existing aircraft from construction number 100 can be charged. Already over 300 VL-3 aircraft have been delivered worlwide.
VL-3 aircraft versions built by Karel Klenor - KLN (2004-2007) and / or Aveko spol. s r. o. (2007-2011) are:
 - VL-3A-1 Sprint - retractable landing gear, R912ULS (100hp) engine, variable pitch propeller;
 - VL-3A-2 Sprint - retractable landing gear, R912UL (80hp)engine, variable pitch propeller;
 - VL-3B-1 Sprint - fixed landing gear, R912ULS (100hp) engine, variable pitch propeller;
 - VL-3B-2 Sprint - fixed landing gear, R912UL (80hp) engine, variable pitch propeller;
 - VL-3C-1 - different wing, fixed landing gear, R912ULS (100hp) engine, variable pitch propeller: complies to LSA category and marketed in the US as Gobosh 800XP;
 - VL-3D-1 Sprint - fixed landing gear, R912ULS (100hp) engine, fixed pitch propeller:
 - VL-3D-2 Sprint - fixed landing gear, R912UL (80hp) engine, fixed pitch propeller;
VL-3 aircraft versions built by JMB Aircraft (since 2012) are:
 - VL-3E-1 Evolution - new horizontal tail, retractable landing gear, R912ULS (100hp engine), variable pitch propeller;
 - VL-3E-2 Evolution - new horizontal tail, retractable landing gear, R912UL (80hp) engine, variable pitch propeller;
 - VL-3F-1 Evolution - new horizontal tail, fixed landing gear, R912ULS (100hp) engine, variable pitch propeller, optional installation of sailplane towing hook;
 - VL-3F-2 Evolution - new horizontal tail, fixed landing gear, R912UL (80hp) engine, variable pitch propeller;

page last updated: 17-08-2019
