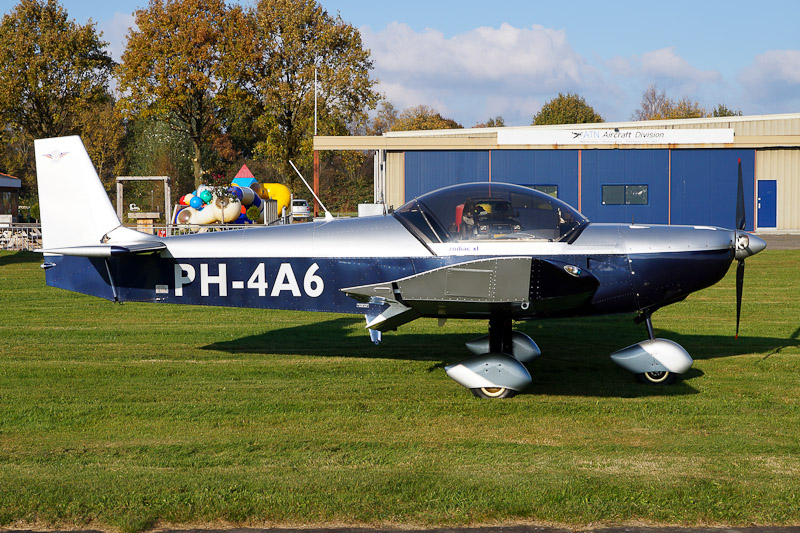

PH-4A6 Zenith Zodiac CH-601 XL c/n 6-9575 - Hoogeveen airfield in Holland - 11 November 2016 more at vliegveld Hoogeveen

The Zenith Zodiac CH-601 XL is a high-performance single-engine, two-seat, low-wing, all metal microlight airplane with a fixed tricycle undercarriage with steerable nosewheel. The CH 601 XL was first flown in 1991 as an improved version of the CH-601 HD; developed for the amateur-built market and also for the American Light Sport Aircraft category. The CH-601 was developed in the early 1990s by Chris Heintz, founder and chief designer of Zenair. The Zodiac CH 601 HD (heavy-duty model) is the basic Zodiac model, based on the original CH 600 aircraft developed in 1984 as a primary trainer. With a reduced gross weight, the specifications of the CH-601 UL model are very similar to those of the CH 601 HD model. In 1992, Heintz licensed the kit manufacturing and marketing rights to Zenith Aircraft Company for the Zodiac CH 601 and the STOL CH 701 designs. In 1992, Heintz also entered into a license agreement with Czech Aircraft Works of Stare Mesto, Czech Republic, to produce and market his Zodiac CH 601 and STOL CH 701 designs for the European market. The Czech-produced Zodiacs were modified and lightened to meet European rules for microlight aircraft. CZAW produced some 750 such machines under this agreement. On 31 December 2006, after the license agreement, under which the Zenair Zodiac CH 601 and STOL CH 701 light aircraft designs were produced by CZAW, was terminated the Czech production came to an end. The Zenair CH-601 is nowadays manufactured in kit form by Zenith Aircraft Company, Mexico, Missouri in the USA and as factory-produced Light-Sport Aircraft (LSA) by Aircraft Manufacturing and Development Co. in Georgia, USA. In kit form, the aircraft is deliverable as a Basic kit and as an Quickbuild kit. The Basic kit, or 49% Zodiac airframe kit requires about one year (or about 450 hours) to build the aircraft, the quikbuild kit just 120 hours. Recommended power for the CH-601 UL is the four cylinder four stroke 80 HP Rotax 912 UL engine, other alternative power units with a recommended power of 65 to 100 HP and up to 265 lbs. installed weight can be installed. Already over 3000 CH-601 airframes are sold all around the world.

On 6 March 2007, the 2006-built Zenith Zodiac CH-601 XL c/n 6-9575 was registered PH-4A7 in the Netherlands with J.H. Snuverink, Emmer-Compascuum. The Zodiac XL PH-4A6 is based in Emmer-Compascuum and operated out of a privat airstrip. On 11 November 2016, the aircraft was seen at Hoogeveen Airfield. Zenith Zodiac CH-601 XL PH-4A6 is powered by a Rotax 912ULS engine.

page last updated: 13-11-2016
