Aérospatiale AS365 C
D-HNHC PH-SAW
AS365 N Dauphin 2
CS-HHR D-HAMV
D-HOAR OO-NHU
Eurocopter EC155 B
4K-AZ45 D-HLEW
D-HLTI G-ISST
OY-HJA PH-EQR
PH-HHO PH-SHN

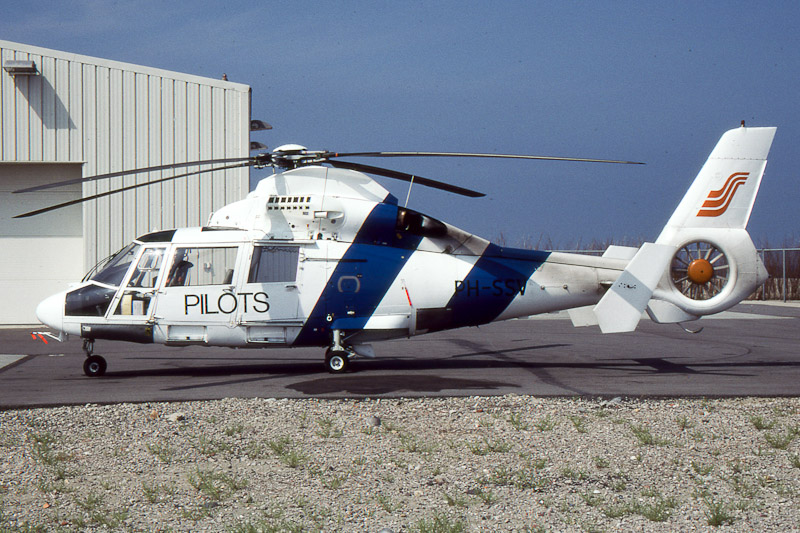

PH-SSV Aérospatiale SA365 N Dauphin 2 c/n 6106 - Schreiner Airways "PILOTS" - Maasvlakte heliport near Rotterdam in Holland - 24 August 1997 MLAs at the Maasvlakte

The Airbus Helicopters AS365 N Dauphin 2 is a twin-engined medium-weight transport helicopter powered by a pair of 737 hp Turbomeca Arriel 1C2 Turbine engines, accommodating up to 13 passengers and 2 crew. The twin-engine SA.365 was developed in 1973 by SNIAS (Société Nationale Industrielle Aerospatiale) out of the single-engine SA.360 Dauphin. The SNIAS SA.365 prototype F-WVKE, a SA.360 fitted with 2 Turbomeca Arriel 1A Turboshafts, flew first on 24 January 1975. In 1977 production commenced with the SA.365-C, with deliveries starting in 1978. An improved version of the SA 365C Dauphin 2, the SA.365N flew first on 31 March 1979. The SA365 N differs from the SA365C in having Arriel 1C turbine engines, a re-profiled fuselage, fully retractable undercarriage and increased fuel capacity in new under-floor tankage. Deliveries of the production model began in 1982. Deliveries of the AS.365 N2, equipped with two Turboméca Arriel 1C2 turboshafts, started in 1990. From 1984, SNIAS operated under the name of Aérospatiale. The helicopter divisions of MBB from Germany and Aerospatiale from France merged in January 1992 to form the Eurocopter Group. A new Eurocopter designation was added: EC 155 B1, originally known as the AS 365 N4. The Dauphin 2 is in use in several military and civilian roles. The AS 565 Panther is the military version of the Dauphin. The AS 366 G1, powered by two Textron-Lycoming LTS.101-750B-2 turboshafts, is used by the United States Coast Guard under the designation HH-65A Dolphin. The Dauphin 2 is manufactured under licence in China as the Harbin Z-9 Haitung and in Brasil as the Helibras MH-1. Already over 1100 AS365/366/565 and EC155 versions have been produced. The ICAO Aircraft Type Designator for the AS365 N helicopters is AS65.

As a result of the merger between the Eurocopter parents Aérospatiale-Matra; DaimlerChrysler Aerospace (DASA) and Construcciones Aeronàuticas Sociedad Anonima (CASA) in July 2000, the Eurocopter group became a division of the new formed EADS (European Aeronautic Defence and Space company). Taking off into 2014, EADS was rebranded as "Airbus Group". Uniting all its activities under a single brand, its helicopter division Eurocopter was rebranded as Airbus Helicopters on 8 January 2014.

The 1984-built Aérospatiale AS365 N Dauphin 2 PH-SSV of Schreiner Airways was seen at the former Maasvlakte heliport near Rotterdam in the Netherlands in service with the Pilots of Rotterdam-Rijnmond. On 25 May 1984, the Airbus Helicopters SA-365N Dauphin 2 c/n 6106 was registered F-ODTB with Héli-Union as operator and Locaiman Ltd, Georgtown, as owner. On 18 December 1986, registration F-ODTB was cancelled as exported. On 17 December 1986, the helicopter was registered I-EHDA in Italy with Soc. Elitos. On 16 June 1992, the AS365 N Dauphin 2 was registered PH-SSV in the Netherlands with Luchtvaartmaatschappij Schreiner Airways BV. On 10 August 1998, registration PH-SSV was cancelled as exported to Nigeria. On 11 August 1998, the helicopter was registered 5N-STO with Aero Contractors Company of Nigeria as operator and Capital Aviation Services BV, as owner. On 18 May 2006, registration 5N-STO was cancelled after the helicopter was withdrawn from use. On 19 June 2009, the airframe of the 5N-STO was seen stored at Toussus-le-Noble airfield near Paris, France.

page last updated: 17-06-2014
