The Technoflug Piccolo B is a German high-wing, T-tailed, single-seat motor glider built by TECHNOFLUG Leichtflugzeugbau GmbH & Co.KG
in Schramberg, Germany. The Technoflug Piccolo B motorglider was the company's premier product, followed up by the Technoflug Carat,
a touring motorglider. The Piccolo is built from GFK-composites. The 23 hp two-stroke Solo 2350 BS engine is mounted behind the cockpit
and above the tail boom in push-fit configuration. The folding propeller Technoflug KS 118-3-2 (diameter 1.22 m) with aluminum hub and
three individually foldable blades is driven by a reduction gear consisting of three V-belts (2.1: 1). When the engine is off, the blades
automatically fold backwards, reducing drag in glider operation. The centrifugal force puts the GFK blades back into operation immediately
when the engine is started. The landing gear is of tricycle configuration and features optional wheel pants to reduce drag. The 13.3 m span
wing is strut-braced and gives the aircraft a 23:1 glide ratio at 70 km/h. The wings fold for storage and ground transport. The design of
the Piccolo is based on the AN20 built and designed by Alfred Neukom. The prototype AN-20 was flown first in 1978, using a T-tail carried
on a Kevlar spar of round section. The Picollo was developed by LTB Frank Borowski in Fluorn-Winzeln and entered production in 1999. The
first Piccolo were built with a pointed nose; the Solo 2350B engine and KS 118-3 Propeller(diameter 1.18 m). In this version, the Piccolo
(later called Piccolo A), did not achieve the increased noise protection as serian production built Piccolo B. This Piccolo B was developed
and built by Technoflug in Schramberg. About 120 Piccolo motor gliders were built. Most original Piccolo A aircraft were converted over time
to Piccolo B.
The ICAO Aircraft Type Designator for the Technoflug Piccolo B is PILO |
|
In 1993, registration D-KIMZ was reserved in Germany for Technoflug Piccolo B s/n 084 but NTU. On 6 December 1993, the Technoflug Piccolo B
was registered HB-2252 in Switzerland. In 2001, registration HB-2252 was cancelled. In 2003, the motor-glider was registered D-KKHB in Germany.

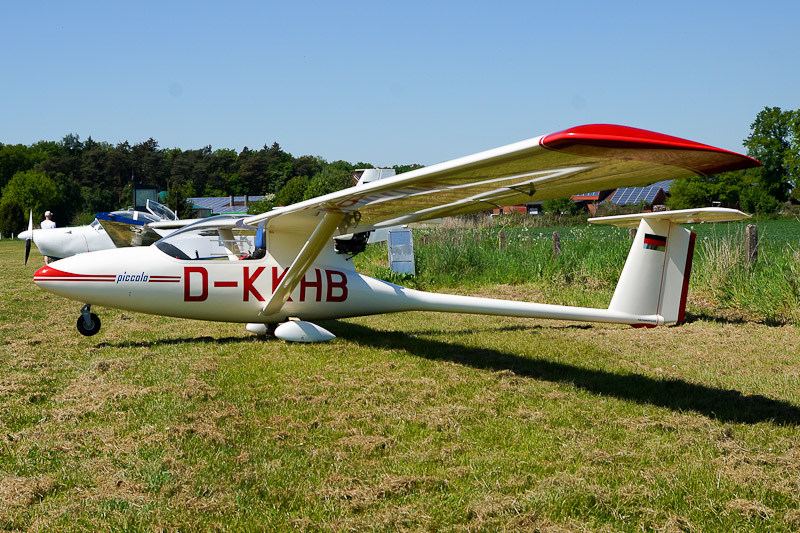

On 1 May 2025, the 1993-built Technoflug Piccolo B D-KKHB was seen at Flugplatz Borken-Hoxfeld (EDLY). |
